- Superior performance - Reliable, high-speed, high-throughput, secure transactions
- Ease of use – Intuitive graphic user interface, reduced footprint with recessed stations, broad portfolio to meet every customer’s needs
- Quality of service – Superior 24/7 customer service, remote monitoring capabilities, comprehensive training, and preventative maintenance programs.
- Conditions and requirements for use: suitable for the transmission of drugs, specimens, blood samples, documents, etc
- It can be used for 24 hours a day and 7 days a week.

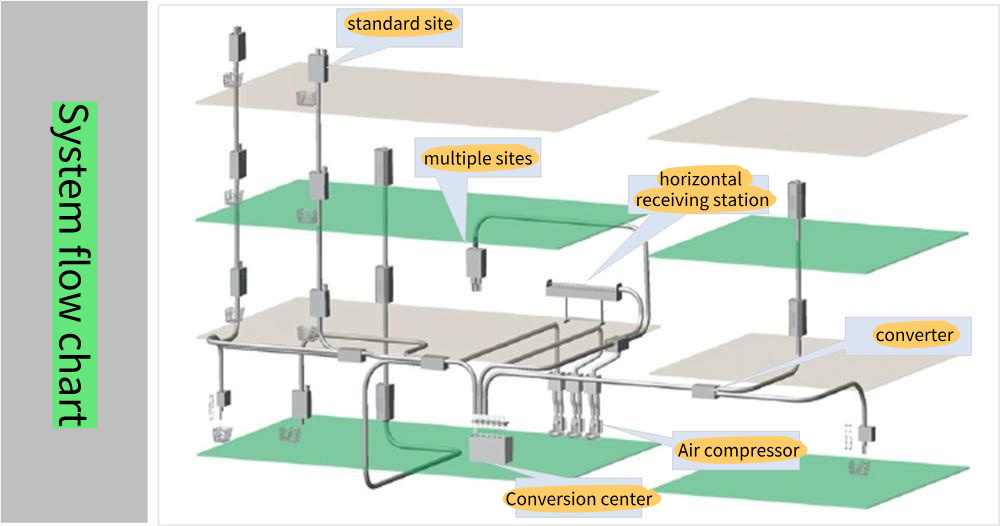

- Working principle: the air compressor draws and presses the air as the power, transmits the goods in the closed network pipe, and can eliminate static electricity;
- Transmission mode: single pipe bidirectional transmission;
- Control mode: the computer monitors in real time, and the central controller controls the whole system operation. The control software is composed of the central controller and line controller based on the stable operating environment of single chip microcontroller, and the PC is only used for system monitoring.
|

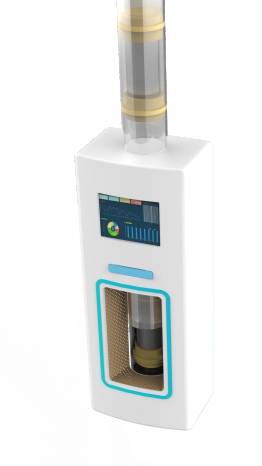

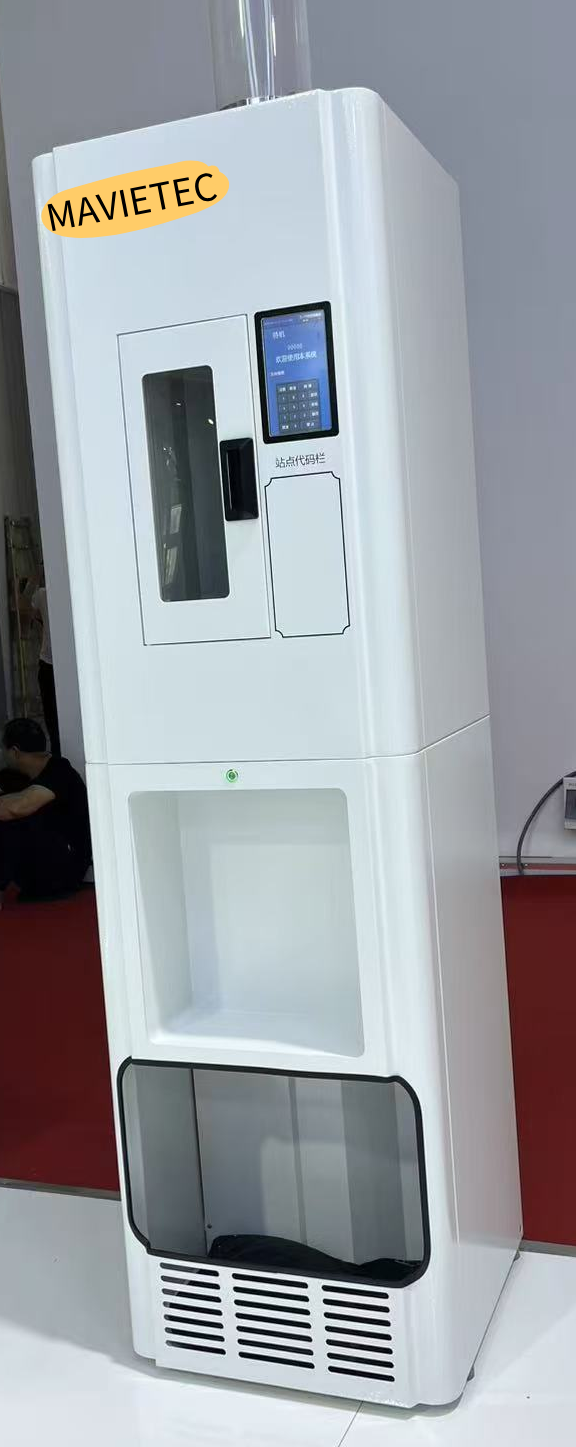

Station Specification
|
|
Size
|
Height 1860 * Width 525 * Thickness 515
|
|
pipe
|
Outer diameter of pipe: 159mm;
outer diameter not less than 159mm,
wall thickness not less than 2.5mm.
|
|
Pipe material
|
stainless steel (304 material), thickness not less than 2.5mm.
PVC 160*3.2
|
|
transmission speed:
|
normal speed 5-8 m/s
|
|
Power voltage:
|
less than 36V
|
The air volume of a single fan should be greater than 9m3/min,
the maximum pressure difference should not be less than 200mbar,
the power of the fan should not be less than 5.5KW
