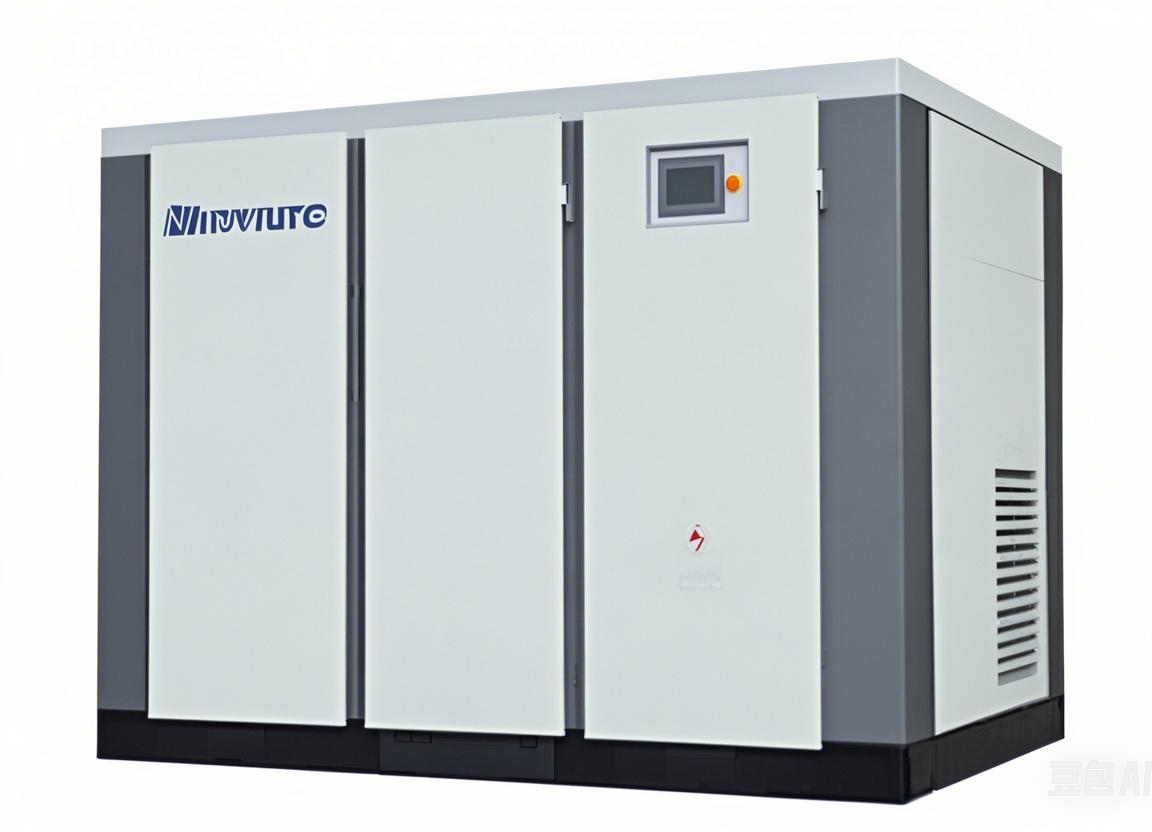

All medical air systems are manufactured according to the projects needs,
All systems could be constructed in compact or not set up.
According to FDA, CE, BS HTM 2022, EN 737-3 and ISO 7396-1 standards
The available subsystems (elements) are the following:
- Compressors (Screw / Piston / Scroll / Oil free / Oil bath). Range:1 - 120Hp
- Vessels (Painted / Galvanised / Vitroflex). Capacity: 500 - 5.000lt
- Dryers (Adsorption / Cooling)
- Filters (Pre-filters / After-filters)
- Water / Oil separators
- Automatic drains (Pneumatic / electrical / zero-loss)
- Activated carbon towers
- CO reduction filters
- Second stage pressure regulator unit
- Emergency inlet point
- Electronic control panel
Features
|
OIL-FREESCROLL(0.86MPA) |
|||||||
|
MODEL |
|
POWER |
DRYER |
STEAM-WATER |
|
REMOVAL FILTER |
|
|
MA3.7II |
0.41 |
3.7 |
1.6 |
1.3 |
0.57 |
0.57 |
0.57 |
|
MA5.5II |
0.62 |
5.5 |
1.6 |
1.3 |
1.3 |
1.3 |
1.3 |
|
MA7.5II |
0.82 |
7.5 |
1.6 |
1.3 |
1.3 |
1.3 |
1.3 |
|
MA11.OII |
1.24 |
11 |
1.6 |
2.8 |
2 |
2 |
2 |
|
MA15.0II |
1.62 |
15 |
2.4 |
2.8 |
2 |
2 |
2 |
|
MA16.5II |
1.86 |
16.5 |
2.4 |
2.8 |
2 |
2 |
2 |
|
MA18.5I1 |
2.03 |
18.5 |
2.4 |
2.8 |
2.8 |
2.8 |
2.8 |
|
MA22.0II |
2.48 |
22 |
3.8 |
2.8 |
2.8 |
2.8 |
2.8 |
|
MICRO-OILSCREW(0.8MPA) |
|||||||
|
MODEL |
|
POWER |
DRYER |
STEAM-WATER |
|
REMOVAL FILTER |
|
|
MAE5.5I1 |
0.75 |
5.5 |
1.6 |
1.3 |
1.3 |
1.3 |
1.3 |
|
MAE7.5I1 |
1.05 |
7.5 |
1.6 |
1.3 |
1.3 |
1.3 |
1.3 |
|
MAE11.OII |
1.6 |
11 |
1.6 |
2 |
2 |
2 |
2 |
|
MAE15.0II |
2.3 |
15 |
2.4 |
2.8 |
2.8 |
2.8 |
2.8 |
|
MA16.5III |
2.9 |
16.5 |
2.4 |
2.8 |
2 |
2 |
2 |
|
MA18.5III |
3.5 |
18.5 |
2.4 |
2.8 |
2.8 |
2.8 |
2.8 |
|
MA22.0III |
5.3 |
22 |
3.8 |
2.8 |
2.8 |
2.8 |
2.8 |
