Electrical Box-lift Transport System(EBLTs)

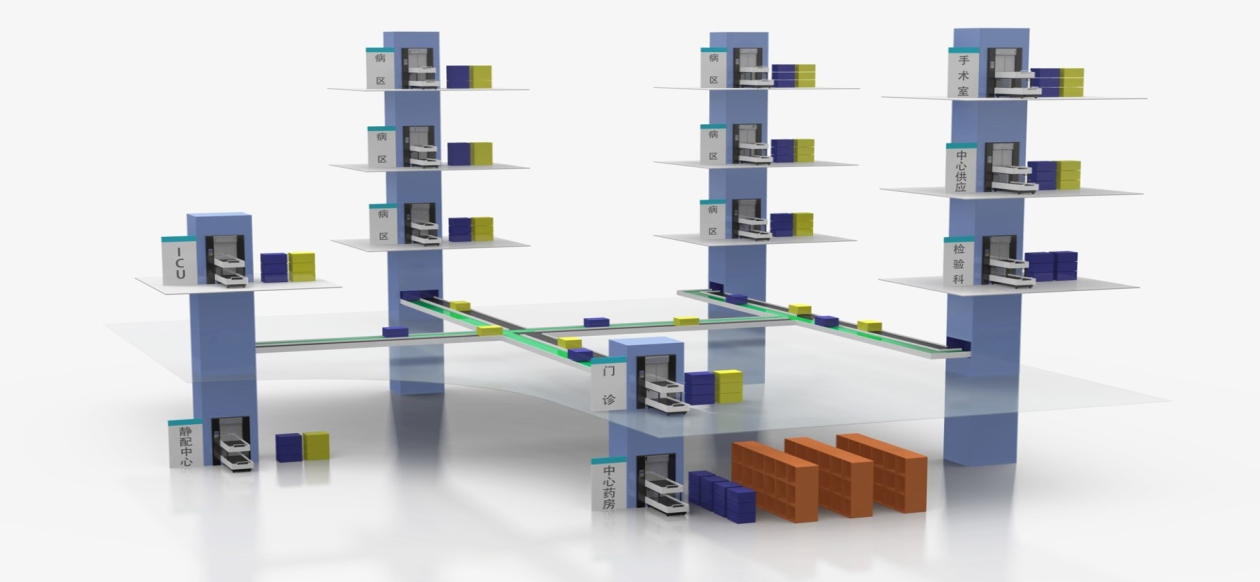

The automated Electrical lift-box system is based on the large capacity conveyor box as the carrier. Under the intelligent scheduling of the control system, the vertical and horizontal conveyors are used for efficient transportation of large size items between various departments and nurse stations of hospital. Our modular conveyor technology solutions are efficient and flexibly meet your hospital requirements.

Advantage:

• Automated delivery system reduce errors and 24/7 working increase efficiency.
• Complete traceability of carriers and transported items.
• Fast and safe transportation of materials within your hospital.
• Increase productivity and reduce operational cost.
• Reduce workload, staff can concentrate more on patients.
• Achieve fast ROI within two to three years

Specifications:

Items	Specifications
Speed	Up to 0.7m/s
Payload	35kg – 55kg
Max. dimensions	600mm × 400mm × 450mm (customizable)
Max. transport volume	85 Liters
Shaft min. dimensions	900mm × 630mm
Technology	Built-in RFID and QR in the box, Dual security recognition, real-time tracking and positioning of carriers
Send mode	IOT automated associated with destination, Button start
Station configuration	Touch screen display, arrival signal
