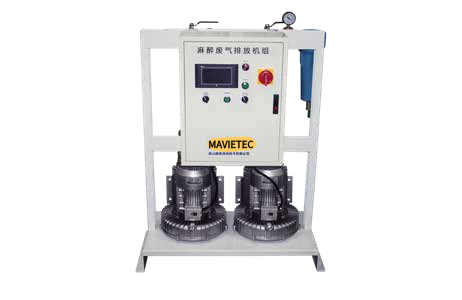

The Anesthetic Gas Scavenging System (AGSS) removes anesthetic gas mixtures from operation theatres and recovery areas protecting the medical staff from possible long term health hazards. All systems are manufactured according to EN ISO 7396-2 and 9170-2.
- Select large flow axial fan, imported brand;
- With a visible window collection tank, oil and water separator, flushing sewage system;
- 3. Integrated skid unit, each function is integrated, flexible connection, easy to install on site;
- 4. Use more than one, use in a cycle, monitor the use status of each pump when running automatically, if one of them failsin case of failure, the equipment will automatically identify and issue an alarm, and continue to work in a loop across the faulty head to ensure that the gas is not stopped
- 5. With flow regulating valve, control the pressure value-180~200mba (to prevent the negative pressure value from being too high or too low).
- With a one-way valve, the analog control valve is easy to monitor and maintain;
- Provide remote control port, which can realize remote control start and stop;PLC, touch screen control, Schneider components, touch screen display; Settings, debugging, etcAll information can be displayed;
- Automatic operation is controlled by pressure sensor; reverse protection; power-off self-recovery selection;
- Can display information: alarm information, maintenance plan, running time, running status, operation button, current, etc
Trend charts, databases;
- Provide remote communication protocol interface to transmit the above data and information display to the workstation remotely through the network
The computer provides data structure, which facilitates the owner to program and display the information of multiple stations;
- Under normal maintenance conditions, the warranty period is 2 years
|
Anaesthetic dispensing unit：
|
The dental section has been increased
|
|
Model
|
Single flow (m3/H)
|
Single power
(kw)
|
System flow(m3/H)
|
High precision filter processing capacity
0.22um,0.01mg/m3)
|
Model
|
Sewage collection tank(L)
|
Clean the washing machine power
(kw)
|
|
GN0.75II
|
72
|
0.75
|
144
|
220
|
GNS0.751
|
28
|
0.37
|
|
GN1.511
|
160
|
1.5
|
320
|
520
|
GNS1.511
|
28
|
0.37
|
|
GN2.211
|
270
|
2.2
|
540
|
650
|
GNS2.211
|
28
|
0.37
|
|
GN3.011
|
318
|
3
|
636
|
1000
|
GNS3.011
|
40
|
0.5
|
|
GN4.011
|
360
|
4
|
720
|
1200
|
GNS4.011
|
40
|
0.5
|
